Used Bottling PET Line Sidel - 2011, 40,000 BPH

Description

Used Complete Aseptic Bottling Line 40.000 bph:
Capacity: up to 40,000 BPH by 0.5 LTRS / 28,000 BPH by 1.5 LTRS
Products: fruit juices
Bottle formats: 0.2 LTRS, 0.5 LTRS, 1.5 LTRS, 1.75 LTRS
YEAR: 2011

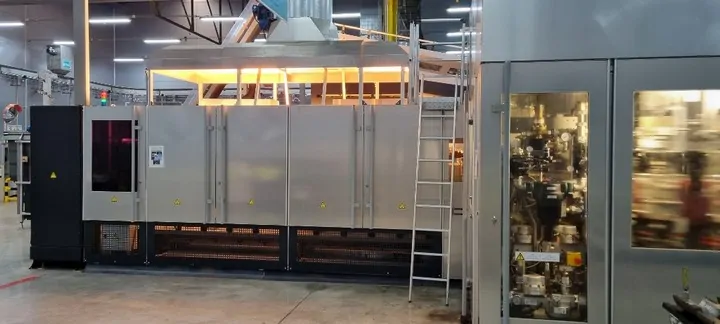

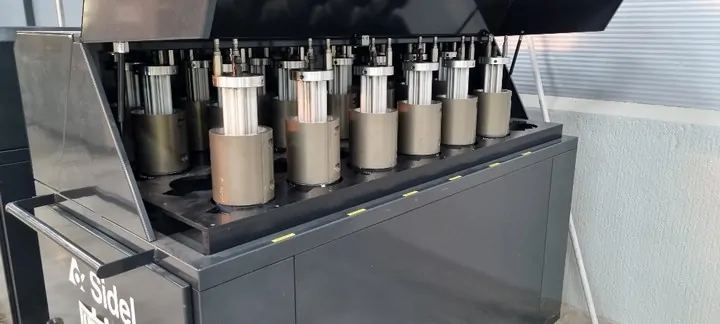

SIDEL SBO 20 Universal PET blowing machine
Composed of:

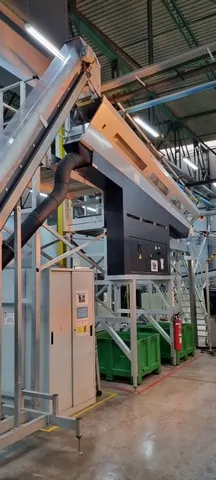

preform tipper
preform hopper, unscrambler and infeed rail
Sidel ARS system HP air low consumption
Eco2 oven with 20 heating modules for 38 neck
blowing station for 20 quick change shell molds
Compressor ABC 4HP-4-LT complete but without cooling tower
moulds are not included
2. Sidel Rafale air conveyor system from exit Sidel
blower to entry Sidel aseptic filler with curves etc
length approx. 250 meters also with full automation & drive and electrical panels.

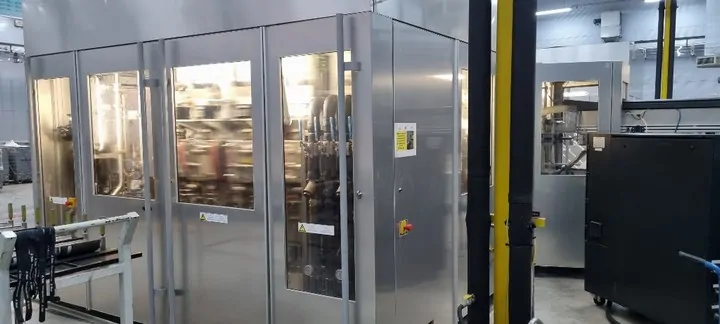

3. Sidel Sensofill FMA 80/24K BS 13 aseptic tribloc
dual aseptic rinsers
filler with 80 filling valves
Arol 24K capper with 24 capping heads
aseptic UBS
2x caps feeder Aidlin 24
sterile steam generator
4. Heuft controller x2
5. Laser coder Videojet

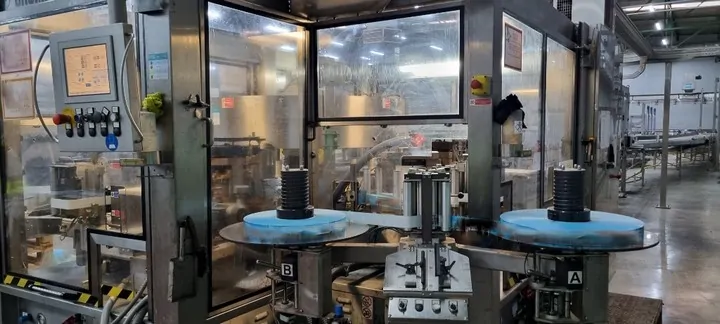

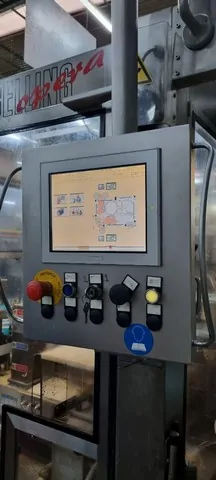

6. Labelling machine SACMI Opera 400RF 257/SR
for OPP wrap around label with bottle formats tools.
7. Labels Inspection HEUFT labels 360° with ejector

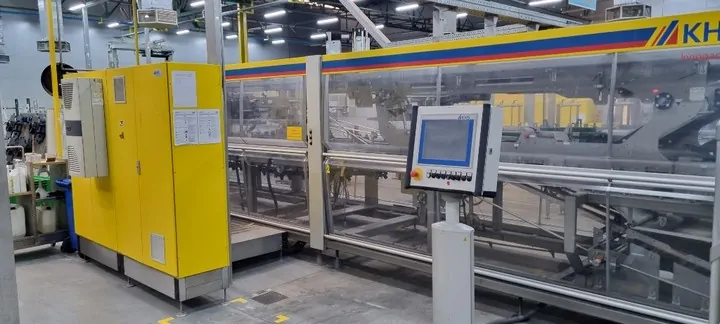

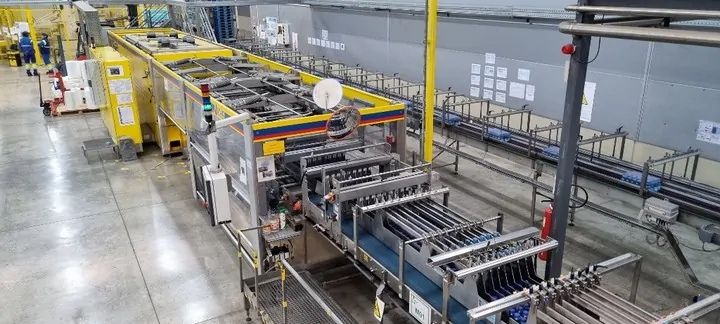

8. Automatic shrink-wrapping machine KHS Kisters
PSP 050B for film and tray for shrinked packs
9. Automatic carton packer KHS Kisters WP A-H for
wraparound carton

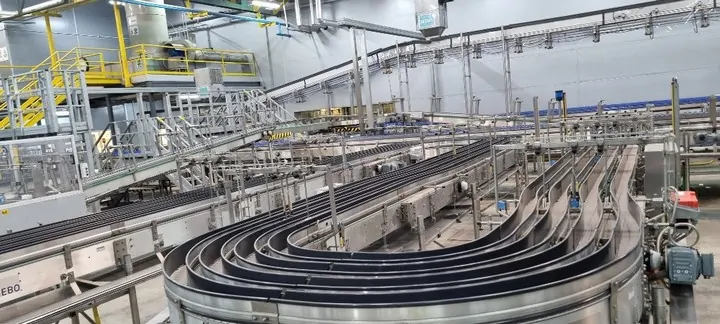

10. Sidel Sorbal complete conveying system for the
bottles and packs with accumulation tables + Ecolab
lubrification and full automation
11. Palletizer Sidel Roboclumn for palletizing packs
and transfer to the wrapping station by pallet
conveyors.
12. Automatic pallets wrapping machine Robopack
Genesis HS T71 with accumulation on pallets
conveyors at exit of the line.
13. Pallets labeller Markem
14. CIP room equipment
15. Pre-treatment room:
Tetra Alsafe
Tetra Therm aseptic drink
Tetra Alblend
Solids dissolver
Tetra Almix
4 tanks Pierre Guérin
2 pumps for syrup transfer
tank for minorities
