Used Bottling Isobaric Filler CFT S 94 / A - 2017, 12,000 BPH

Description

SYNCROBLOC FOR LABELING AND BEER BOTTLING IN GLASS
Model: CFT S 94 / A
Production Capacity: Up to 12,000 bottles/hour
Container Types:
• 0.33 L glass bottles (long neck and champagne type)
• 0.75 L glass bottles (champagne type)
Supported Caps:
• Crown Ø26 mm on 0.33 L long neck bottles
• Crown Ø29 mm on 0.33 L champagne-type bottles
• Crown Ø29 mm on 0.75 L champagne-type bottles
Labeling:
• Self-adhesive front and back labels for 0.33 L long neck bottles
• Wrap-around self-adhesive labels for 0.33 L and 0.75 L champagne-type bottles

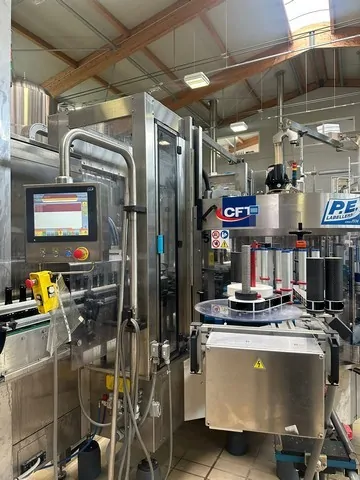

PE LABELER
Maximum Output:
• 12,000 bottles/hour without orientation
• 11,000 bottles/hour with orientation
Operation:

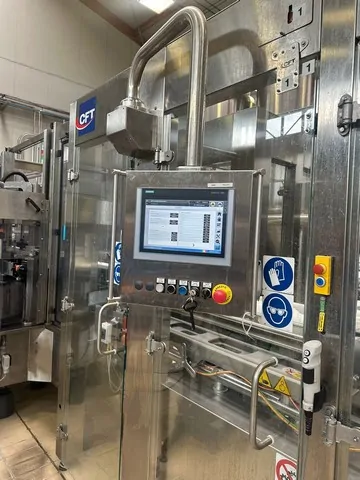

• PLC + touch-screen panel for control
• Automatic speed adjustment via inverter and sensors
• Status indicator column light
Main Components:
• 4 self-adhesive labeling stations
• Optical fiber system for bottle orientation
• Photoelectric sensors for transparent labels
• Label ionizer to eliminate static charges
• No-Stop labeling system (label change without stopping production)
Safety and Structure:
• CE-compliant safety guards with protective doors
• Plate rotation with servo motors and encoders
• Electrical cabinet in stainless steel AISI 304

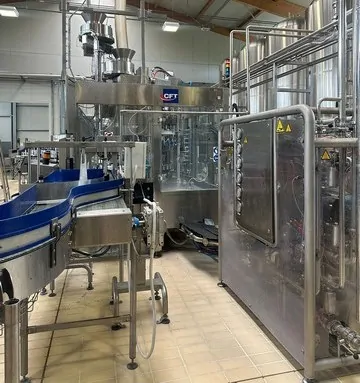

CFT MONOBLOC COMPOSED OF:

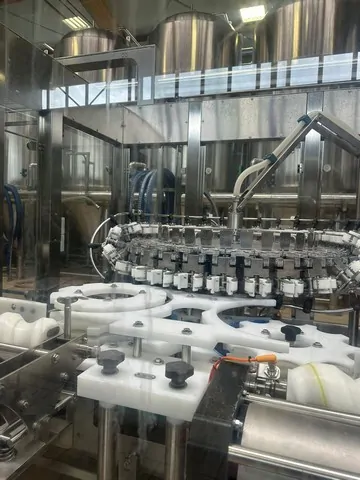

• Fixed nozzle rinser, single treatment, 30 grippers

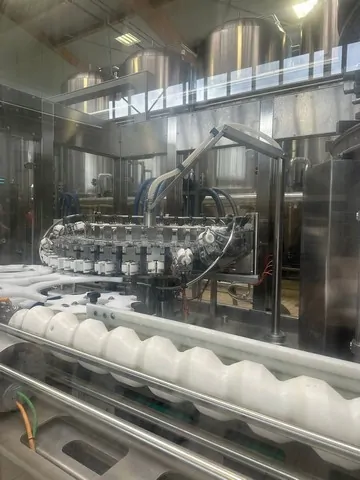

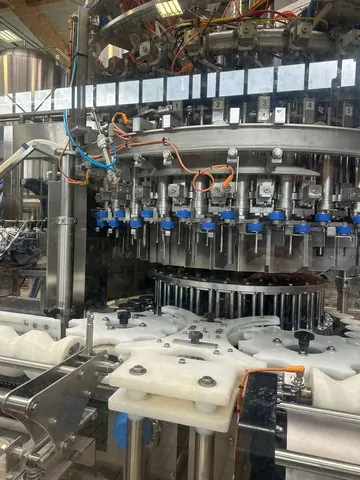

• Isobaric filler with 30 valves
• Crown capper with 6 heads
• Pitch between valves: 113 mm
• Supported bottle diameters: 50 – 98 mm
• Supported bottle heights: 125 – 365 mm
• Production Capacity: 12,000 bph on glass bottles
Filling Features:
• Servo-controlled valves for electronic filling phase management
• MasterTronic system for automatic regulation of filling phases (pre-evacuation, filling, decompression)
• CIP/SIP system for sanitization with automatic dummy bottles

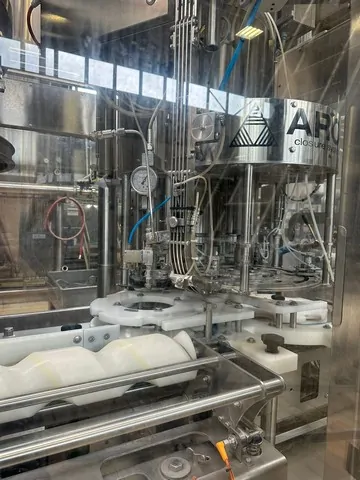

Crown Capper
• Suitable for Ø26 mm and Ø29 mm crown caps
• Centrifugal cap feeder with cap presence sensor
• Pick & Place device for cap transfer
• Pressure heads with magnetic pickup
AUTOMATIC QUALITY CONTROL INSPECTOR
Checks Performed:
• Minimum and maximum filling level (with foam compensation)
• Cap presence via photoelectric sensor
• Label presence with dedicated sensors
• Automatic ejection of non-compliant bottles
Software Features:
• Real-time visualization of filling and production statistics
• Storage for up to 60 bottle formats
• MODBUS connection for remote data management

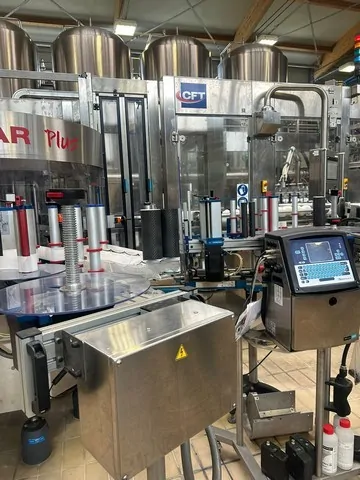

INKJET CODER
• Printing of codes on bottles and labels
• Support for different types of ink
CAP ELEVATOR
