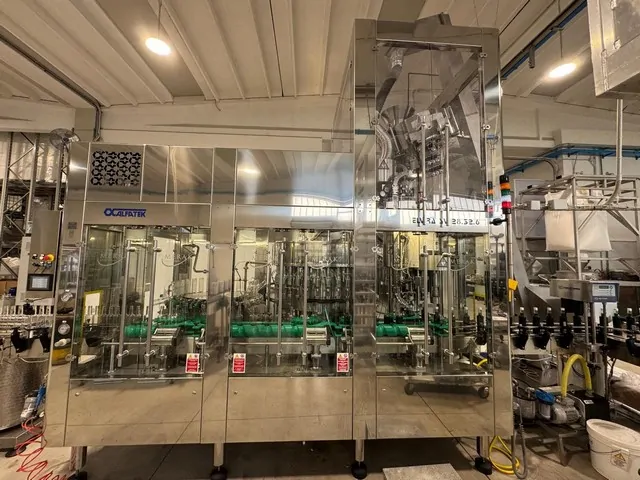

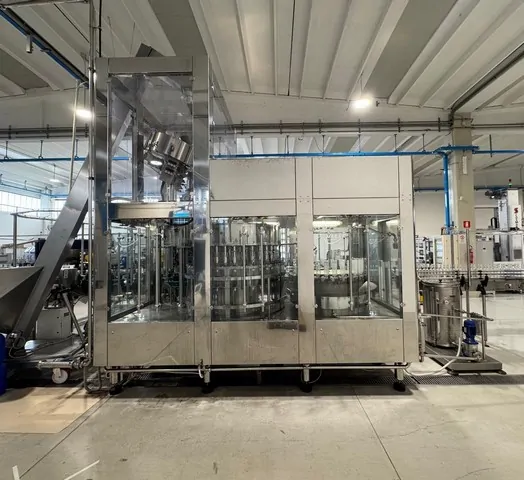

Used Bottling Gravity Filling Monoblock Alfatek TBT 28.32.6 ELVIRA - 2013, 8,000 BPH

Description

Used Filling triblock Alfatek TBT 28.32.6 Elvira:
Model: TBT 28.32.6 ELVIRA
Year: 2013
Speed: 8,000 BPH with 0.750 liter bottles
Clockwise direction
Suitable for glass and PET bottles
Can fill liquid or dense products

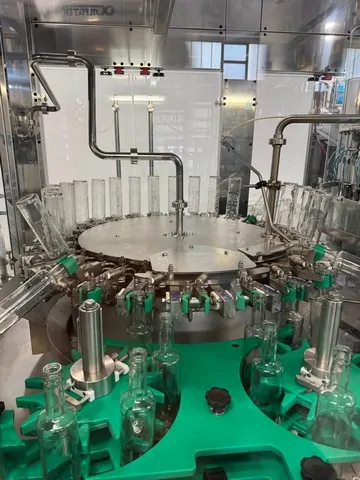

RINSER
28 clamps
Carousel height adjustment: electric
Fixed nozzle
Number of treatments: 1
Type of treatments: air or water
Recirculation tank

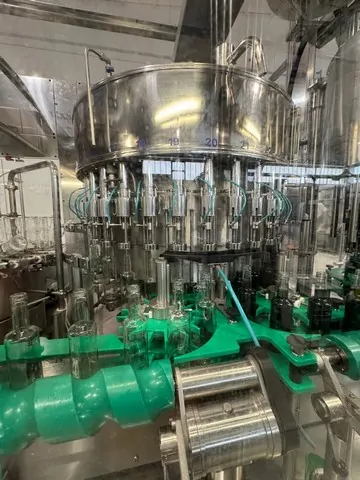

FILLER
32 valves
Tank height adjustment electric
Filling type: light pressure in the tank, empty in the bottle
Valve type: mechanical
Automatic level variation with electronic-mechanical system

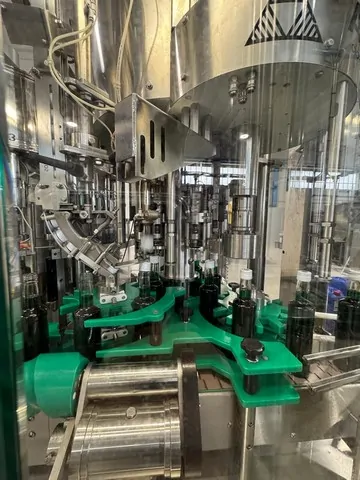

CAPPER
6 heads
Type of cap that can be processed: Aluminum screw cap; plastic pressure cap, plastic mushroom cap
Electric head height adjustment
Screw cap size:
– Ø 31.5 mm x 24 mm (h)
– Ø 31 mm x 8 mm (h)
– Ø 31.5 mm x 60 mm (h)
– Ø 31.5 mm x 44 mm (h)
Snap cap size for PET bottles: Ø 31 mm x 21 mm (h)
Plastic mushroom cap size: Ø head 29 mm x 13 mm (h)
Distribution system:
Distribution by catch on the fly and Pick & Place
GENERAL DATA
Accident prevention protections with glass doors
Sterile chamber pressurized with microfiltered air 0.2 micron
Universal augers and variable geometry stars to be able to process bottles with Ø 55-110
