NP 666 · Used Bottling Lines
Used Bottling Can Line KHS Depack 92 - 2001, 12,000 BPH
Available
1 / 10
Used 2001 used cans bottling lines, produced by KHS Depack 92, is a machine designed for line applications. Built in 2001, this unit has a production speed of 12000 BPH, making it suitable for medium to high output bottling needs.
The machine uses Gravity technology. It is designed for Carton products. Operating direction: Counterclockwise. Current condition: As Is.
The unit is equipped with safety protections to ensure safe operation. Currently located in Europe. Availability: available.
- Code
- NP 666
- Manufacturer
- KHS
- Model
- Depack 92
- Year
- 2001
- Speed
- 12000 BPH
- Condition
- As Is
- Direction
- Counterclockwise
- Product type
- Carton
- Filling technology
- Gravity
- Subcategory
- Cans
- Safety protections
- Included
- Location
- Europe
- Availability
- available
Description

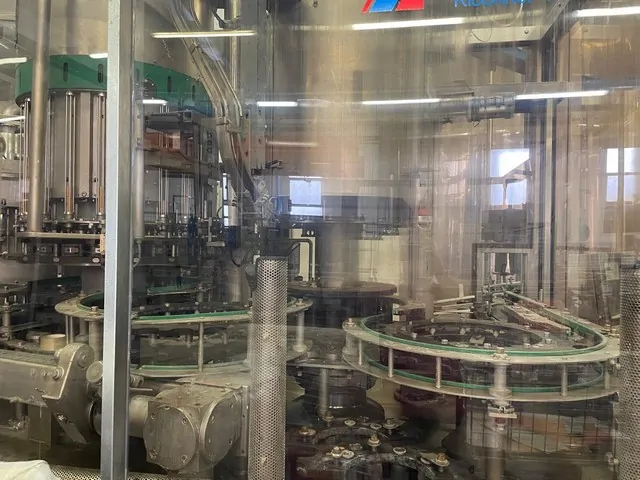

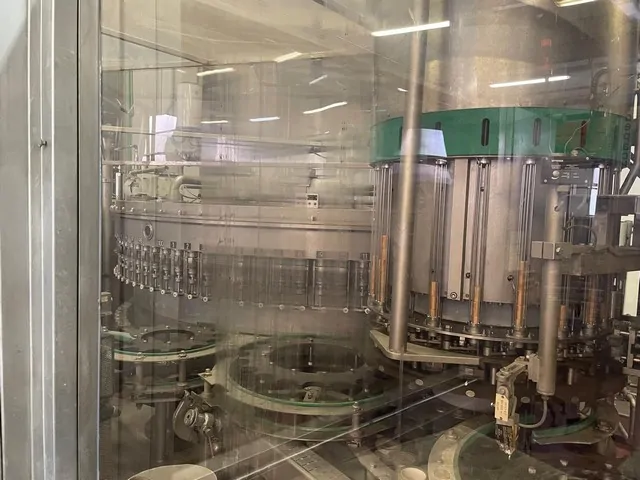

Used Complete Bottling Line for Wine 12.000 bph: Speed: 12.000 BPH with bottles of 0.75 L Depalletizer Keber: Model: Depack 92 Year: 2001 Speed: 65 layers/hour Pallet Storage Inter-layer system Dimension pallet 1000 mm x 1200 mm x 1400 mm Maximum height for pallet 2300 mm Microfiltration Pall: Model: Saso64gnw80j-it Year: 1998 Triblock KHS Model: Innofill um Clockwise directions Speed: up to 33.000 BPH Triblock composed of Rinser 100 clamps Automatic adjustment height Fix nozzles Double treatment Water and Nitrogen Filler 100 valves by gravity Automatic adjustment height tank Mechanicals valves Pre-evacuation Capper 20 heads for natural straight corks Dimension of corks: 25 mm Ø x 48 mm H Vacuum before capping Inert gas injection system before capping Stelvin capper 15 heads Nr. 2 pneumatic cap elevators 3 Inspecrtor FT System: Model: clx-300/ce333 Control presence nr. 3 ejectors on conveyor 1 after Triblock for levels and cap/cork 1 after capsuling for capsules 1 after labeller for lables Capsules distributor WBeer: Long range storage Suitable for PVC capsules Nortan Capsuling machine for PVC Model: Termocap 12 Year: 2002 12 heads Manual adjustment height Labeller Kosme: Modello: Top.Star Counterclockwise directions 16 Heads Mechanical movement plates 4 station (2 cold glue; 2 adhesive) Suitable to apply Front and back (adhesive) Front and back (glue) Optical centering by photocells Additional ironing on exit Conveyors bottles and cartons Keber: Case Erector Keber: model: Formapack 3 s Year: 1997 Cold glue Gluer Nordson serie 3400v Case Packer Keber: Model: Incapack Speed: 400 CPH Single registrable head Sockets: 30 Suitable for 4 or 5 cartons 3X2 or 2 cartons 4X3 Put hive Keber: Model: Insertpack Heads: 3 Suitable for 3 cartons 3X2 or 2 cartons 4X3 Carton closing Keber: Model: Incolpack Box weigher Ft System: Model: pco 150 nx Eject system on conveyor Palletizer Keber: Model: pal mec arm 98 Speed: 1.5 Layer/minute Interlayer system Maximum height pallet 2300 mm Shrink pallet Keber: Model: Volpack 095 Speed: 19 Pallet/hour Maximum workable pallet 2200 mm Rotating table
